Cast basalt composite pipeline of dust removal system

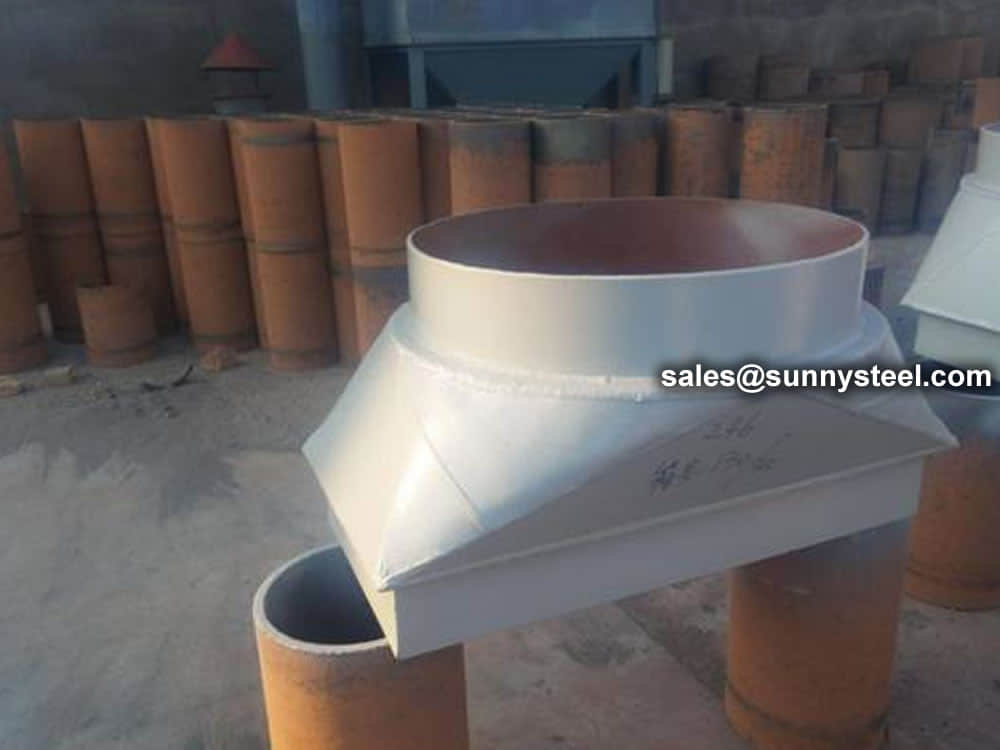

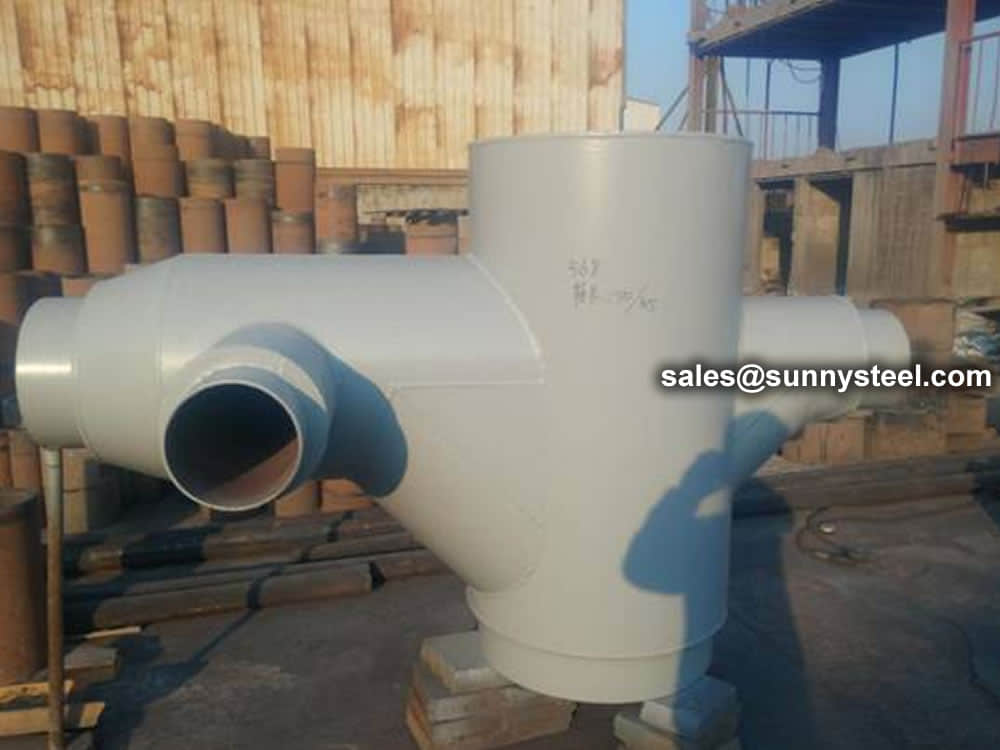

Cast basalt composite pipeline of dust removal system are used too many industrial areas where the abrasive, chemical and hot materials transported and which are commonly lined steel elbows. Cast basalt composite pipeline of dust removal system is composed of steel pipe tee, cast basalt pipe and cement mortar concrete. At the same time cement mortar is selected as the filling material and this can make the inside surface of steel pipe in alkali mediums. So the surface of steel pipe generates purifying films These films can prevent being rusted.
Please send your inquiry by sales@sunnysteel.com
Description
Cast basalt composite pipeline of dust removal system are used too many industrial areas where the abrasive, chemical and hot materials transported and which are commonly lined steel elbows. Cast basalt composite pipeline of dust removal system is composed of steel pipe tee, cast basalt pipe and cement mortar concrete. At the same time cement mortar is selected as the filling material and this can make the inside surface of steel pipe in alkali mediums. So the surface of steel pipe generates purifying films These films can prevent being rusted.
Comparision Chart
Comparison of Ceramic lines with few other materials under standard conditions| Material | Thickness(mm) | Approx life ( Months ) |
|---|---|---|
| Mild Steel | 10 | |
| Cast Iron | 20 | |
| Ni-Hard | 20 | |
| Cast Basalt | 30 | 20-25 |
| Ceramic | 10 | 35-40 |
Basalt is a dark, dense-looking rock, often with small porphyritic crystals, and weathering to a brown colour on exposed surfaces. It is the commonest of all lavas, the basalt flows of the world being estimated to have five times the volume of all other extrusive rocks together. Basalt also forms small intrusions.
Basalt casts are considered the best lining materials for industries dealing with abrasion resistance.
Chemical substance ( weight %) of cast basalt
| SiO2 | Al2O2 | Fe2O3 | TiO2 | CaO | MgO | K2O | Na2O | FeO | P2O5 |
|---|---|---|---|---|---|---|---|---|---|
| 43.13-41.12 | 12.5-13.52 | 8.64-9.5 | 2.02-2.62 | 9.05-10.22 | 8.65-10.47 | 1.4-1.75 | 4.62-5.28 | 4.82-6.25 | 1.1-1.38 |
The excellent performance of cast basalt lined steel pipe is that it sets tenacity of steel pipe, abrasive resistance of cast basalt pipe, concreteness of cement mortar in one.
This greatly improves the products adaptive capacity in complicated operation conditions. At the same time. Cement mortar is selected as the filling material and this can make the inside surface of steel pipe in alkali mediums. So the surface of steel pipe generates purifying films. These films can prevent being rusted.
Physical performance of cast basalt products
| Category | Attribute |
|---|---|
| Density | 3g/cm3 |
| Compressive Strength | ≥ 450MPa |
| Bending strength | ≥ 60MPa |
| Impact strength | 1.76KJ/M2 |
| Abrasive strength | 0.07g/cm2 |
| Vickers scale | ≥ 720kg/mm |
| Elasticity modulus | 1.67x105MPa |
| Dilatation coefficient (60℃) | 8.92x10-6 |
| Chemical Attack Resistance | |
| 95%-98% H2SO4 | ≥ 98% |
| 20%H2S4 | ≥ 94% |
| 20 %NaOH | ≥ 98% |
Application
Cast basalt pipes owing to an excellent performance of abrasive and corrosion resistance .It may be used as the liner of pipeline for hydraulic,pneumatic of conveyance of material and corrosion materials or slurry.We can offer the basalt pipes with nominal diameter of 40mm-800mm.
Cast Basalt can be used for the lining of pipework, chutes, bunkers, cyclones, and hoppers. It has become the global standard in areas such as ash slurry pipework, often used at fossil-fuel power stations. It is an all-round cost-effective and adaptable lining material that extends the life of equipment in the pipe or tile form where affected by erosion.
Cast Basalt is well-proven in a variety of industries as a cost-effective, long-lasting lining material used to extend the operating life of equipment manufactured or lined with lower-wearing materials such as steel, cast iron, rubber, and polyurethane.
Cast basalt lined steel pipe, as both a wear—resistant and corrosion—resistant materials, the transport properties of wear or corrosion of materials, after thirty years of practical verification, cast basalt lined steel pipe can be well done.
Installation site
Cast basalt is also used in cement plants for making air separators, chain conveyor, silica hoppers, nozzles, coal hoppers, cement hoppers, cyclones, raw mill ducts, chutes, thick slurry lines, mixers, grate cooler housing, coal ventury etc.
Cast basalt pipes have an excellent performance of abrasive resistant and corrosion resistant, can be used as the pipeline lining in conveying wearable materials and corrosion materials. Such as: electric power plant, chemical plant, metallurgy industry, mine and so on.
- Tailings pipeline
- concentrate pipeline
- pipeline of transporting ore
- pipe of transporting ash and residue in electric power station
- pipe for transporting coal—water
- pipe of sending sand by wind power
- The concentration of slurry chute
- edge—milling machine
- disk feeder
- slurry chutes
- blast flush fines chute
- blast furnace slag ditch
- raw ore chute
- funnels of autogenously mill
- classification return mines chute
- overflow launder
- coke—conveying chute
- saturator
- acid separator
- cyclone separator
- sand mixed machine
- punch mine ditch in mining industry
- storage tank mine blast, coke funnel
- all kinds of chutes, funnels, storage bin andso on.
- load and unload material chute in fire—resistant industry
- centrifugal concentrator punch mine launder
Cast Basalt Composite Pipes Used for Years
- hydro cyclone
- Precipitator
- pickling tank
- slag conveyor
- mixing machine downhill plate
- conveying equipments need wear protection
Packing
Cast basalt pipe adopts foam packaging, then in accordance with the specifications to put them into wooden cases, sometimes they can be directly loaded into the compartment or container.
Connection
Cast basalt lined pipes and fittings can be supplied with different and connections as per the design requirement to suit the site conditions and easy installation.
Flange Connection
As a standard production, we supply flanged components according to DIN, with at least one movable flange for easy mounting, but pipes with plain ends or for custom coupling are also available. Flange Connection Is One Kind Of Common Pipeline Installation Connections. By Two Pieces Of Flanges, Pipeline, Valve, Equipments Are Connected And It Forms A Tight Piping System. When Pipeline Pressure Is Larger, Flange Connection Is Priority Selection. Flanges Have Lots Of Different Sizes. Flange Size Is Determined According To Pipeline Normal Diameter And Pipeline Operation Pressure.
The parameters of the outside steel pipe will be decided according to the working pressure of the system. The connection of the pipes and fitting will be of flange connections, easy—flexible joint connection or by welding.
By two pieces of flanges, pipeline, valve, equipments are connected and it forms a tight piping system. When pipeline pressure is larger, flange connection is priority section. Flanges have lots of different sizes.
Flange size is determined according to pipeline normal diameter and pipeline operation pressure.
Welding & Beveled End
It suits short Distance Pipeline System Without Maintenance. It Is One Kind Of Common Installation Connections. It Requires Installation Personnel Higher Welding Ability. It Also Restricts By Welding Site, Distance, Welding Positions. Welding Connections Is Inconvenient In Later Maintenance.
Easy-Flexible Joint Connection
It Is One Of High Efficient And Rapid Installation Connection. I T Has The Below Characteristic: Easily Install And Disassemble, Fast Installation, Temperature Adjustable Compensation Function, Saving The Necessary Expansion In Long Pipeline. Easy-Flexible Joint Also Has Angle Compensation Characteristic. At Smaller Angle Turning Points, Easy-Flexible Joint Can Be Instead Of Bends And Adjust Angle.
Design aspects
1. The bend radius should be minimum 3 times of the nominal bore.
2. At discharge end of each bend, cast basalt lined straight pipe of length 5 to 12 times the nominal bore must be used.
