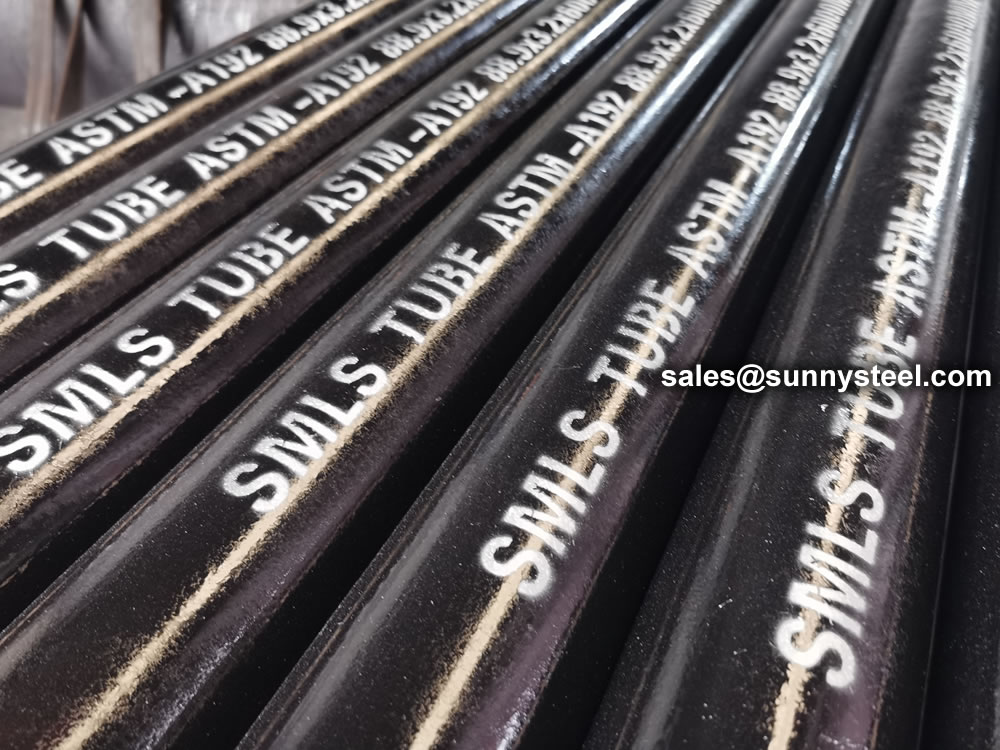

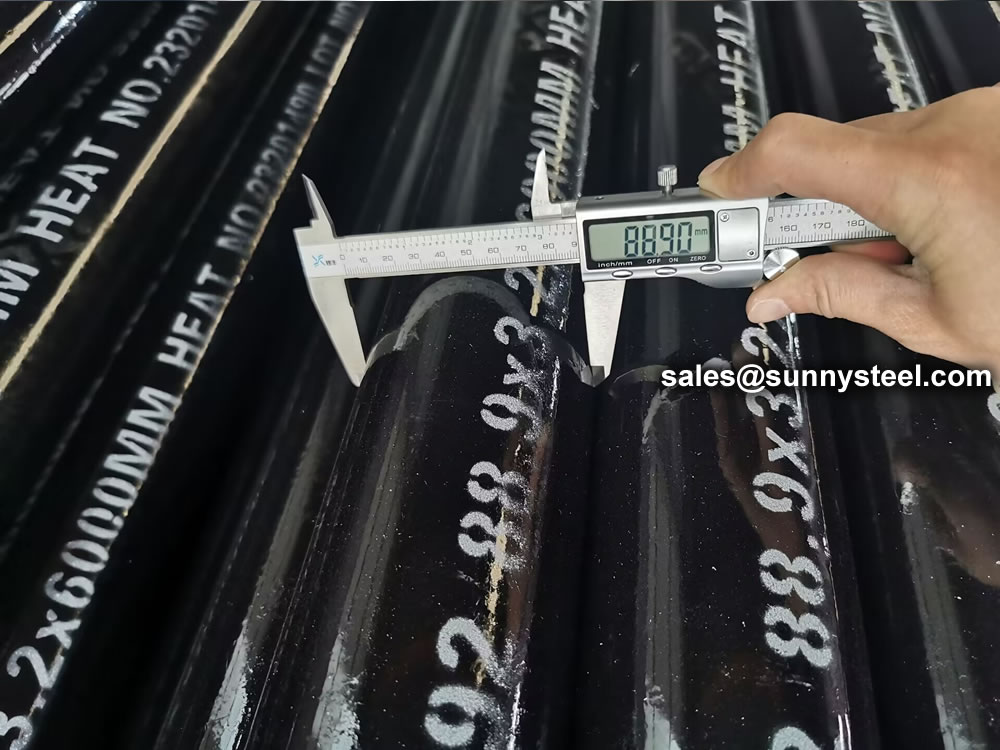

What are ASTM A192 Boiler Tubes?

ASTM A192 Boiler Tubes are seamless carbon steel tubes used in high-pressure boilers, super heaters, and heat exchangers.

They are designed to withstand high temperatures and pressures and have excellent corrosion resistance. SA 192 Boiler Tubes are widely used in various industries, including power generation, chemical processing & petroleum refining.

A192 Boiler Tubes Flattening Test

One flattening test shall be made on specimens from each end of two tubes selected from each lot or fraction thereof.

A192 Boiler Tubes Flaring Test

One flaring test shall be made on specie- men from each end of two tubes selected from each lot or fraction thereof. These tubes shall be selected apart from those used for the flattening test.

A192 Boiler Tubes Inspection and Test

Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength,Yield Strength, Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), Surface and Dimension Test,No-destructive Test, Hydrostatic Test.

Chemical compositions(%) of ASTMA 192M / ASME SA-192M

C	Si	Mn	P	S
0.06-0.18	≤0.25	0.27-0.63	≤0.035	≤0.035

Mechanical properties of ASTM A 192M / ASME SA-192M

Yield Strength (Mpa)	Tensile Strength (Mpa)	Elongation (%)
≥180	≥325	≥35

Hydrostatic test pressures of ASTM A192M / ASME SA-192M

Each tube shall be subjected to the hydrostatic pressure test, or instead of this test, a nondestructive test may be used when specified by the purchaser.

Outside Diameter of Tube, in. [mm]	Hydrostatic Test Pressure, psi [MPa]
Under 1 [25.4]	1000 [7]
1 to 11⁄2 [25.4 to 38.1], excl	1500 [10]
11⁄2 to 2 [38.1 to 50.8], excl	2000 [14]
2 to 3 [50.8 to 76.2], excl	2500 [17]

Grade		ASTM A192 / ASME SA192
UNS No		K01201
Old British	BS	CFS 320
German	No	17175
	Number	1.0305
Belgian		837
Japanese JIS		D3563 / G3461
French		A49-213
Italian		5462

JIS number and corrensponding foreign standards

JIS			ASTM			BS			DIN			NF			ISO			Index Number
Standard Number	Grade	Tupe	Standard Number	Grade	Tupe	Standard Number	Grade	Tupe	Standard Number	Grade	Tupe	Standard Number	Grade	Tupe	Standard Number	Grade	Tupe
G3461	STB340	C	A161	LC	C	3059	HFS320	C				A49-245	TS34e	C				C010
	(STB35)		A192	–	C	“	CFS320	C				“	TS34c	C
			A226	–	C	“	ERW320	C
			A556	GrA2	C	“	CEW320	C
			A557	GrA2	C	“	S1 360	C
						“	S2 360	C
						“	ERW 360	C
						“	CEW360	C
						3606	ERW320	C
						“	CEW320	C
						“	CFS320	C
	STB410	C	A179	GrC	C	3059	S1 440	C	17175	St45.8	C	A49-213	TU42c	C	2604-02-01 00:00:00	TS9H	C
	(STB42)		A210	GrA1	C	“	S2 440	C	17177	St42.8	C	A49-215	TU42c	C	“	TW9H	C
			A556	GrB2	C	“	ERW 440	C				A49-243	TS42c
			A557	GrB2	C	“	CEW 440	C				A49-245	TS42c
						3602	HFS 410	C				“	TS42c
						“	CFS 410	C
						“	ERW 410	C
						“	CEW 410	C
						3606	ERW 440	C
						“	CEW 440	C
						“	CFS 440	C
STB510	C							C	17175	19Mn5	C	A49-213	TU52C	C	2604-02-01 00:00:00	TS18	C
(STB52)								C				A49-248	TU52C	C
